NANO, the photobioreactor
made for lab efficient customisable

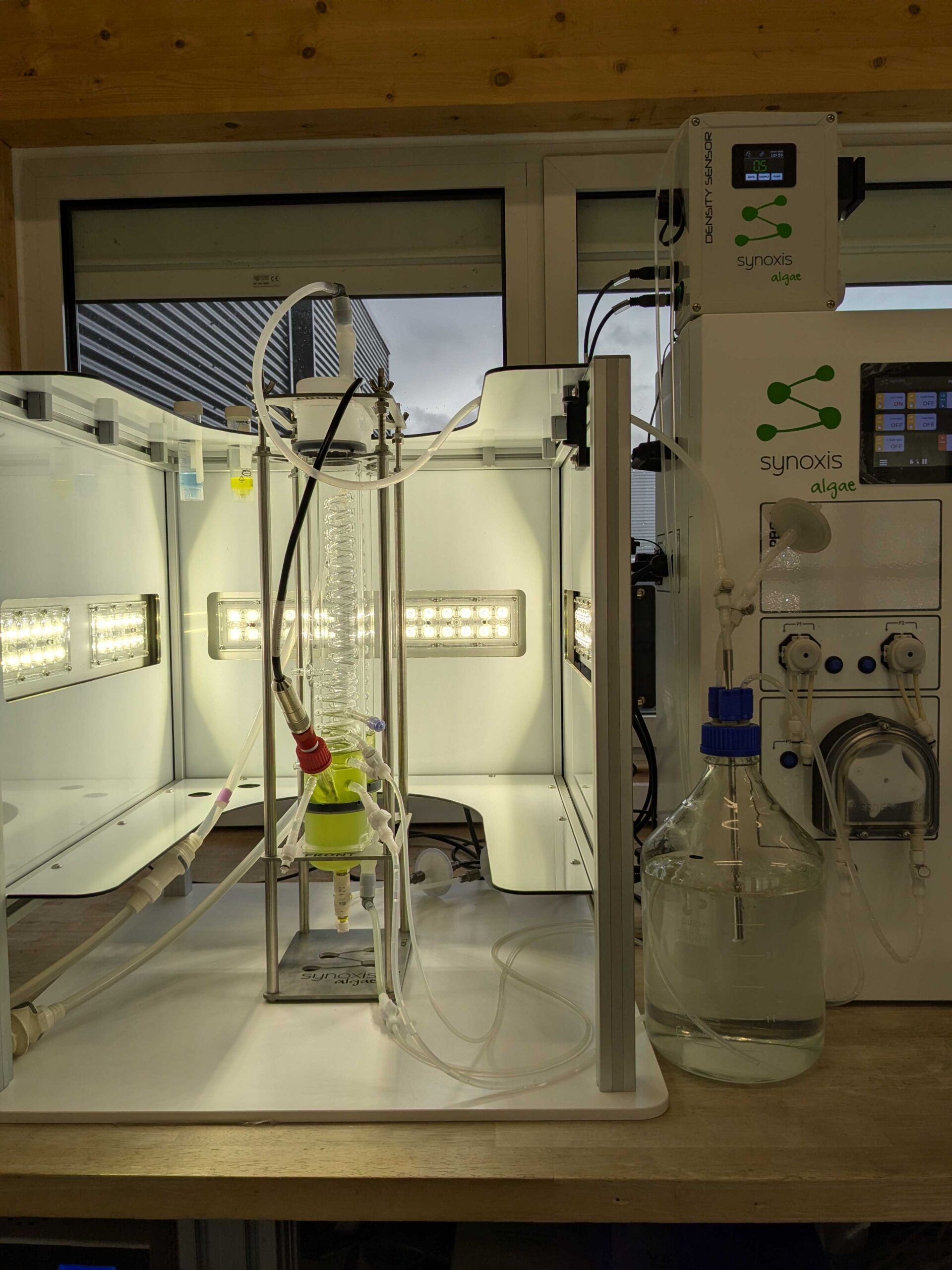

NANO
Our lab photobioreactor, NANO, is designed to provide a controlled and optimal environment for the growth of photosynthetic microorganisms such as microalgae and cyanobacteria.
Our cutting-edge technology enables us to optimise the natural conditions for photosynthesis, by controlling with precision parameters such as light, temperature, pH and nutrients.
This photobioreactor has many advantages. First of all, it allows you to conduct reliable, reproducible experiments in a controlled environment to optimise your biomass production. Reliable, flexible and efficient, it opens up new scientific perspectives. Its TWIN system allows you to grow two different algae simultaneously or under different conditions.
“We were particularly impressed by the rapid growth of the microalgae and the biomass obtained”
ESITECH
“After 3 months’ use, we can confirm that it is by far the most effective photobioreactor on the market”
Ritmo Agroenvironnement
« Initially, this seemed rather complex. That was without counting on Hugo’s training and the documentation system that came with it the machine »
UCO Bretagne nord
Set up your NANO
Choose the number of growth chambers and add accessories

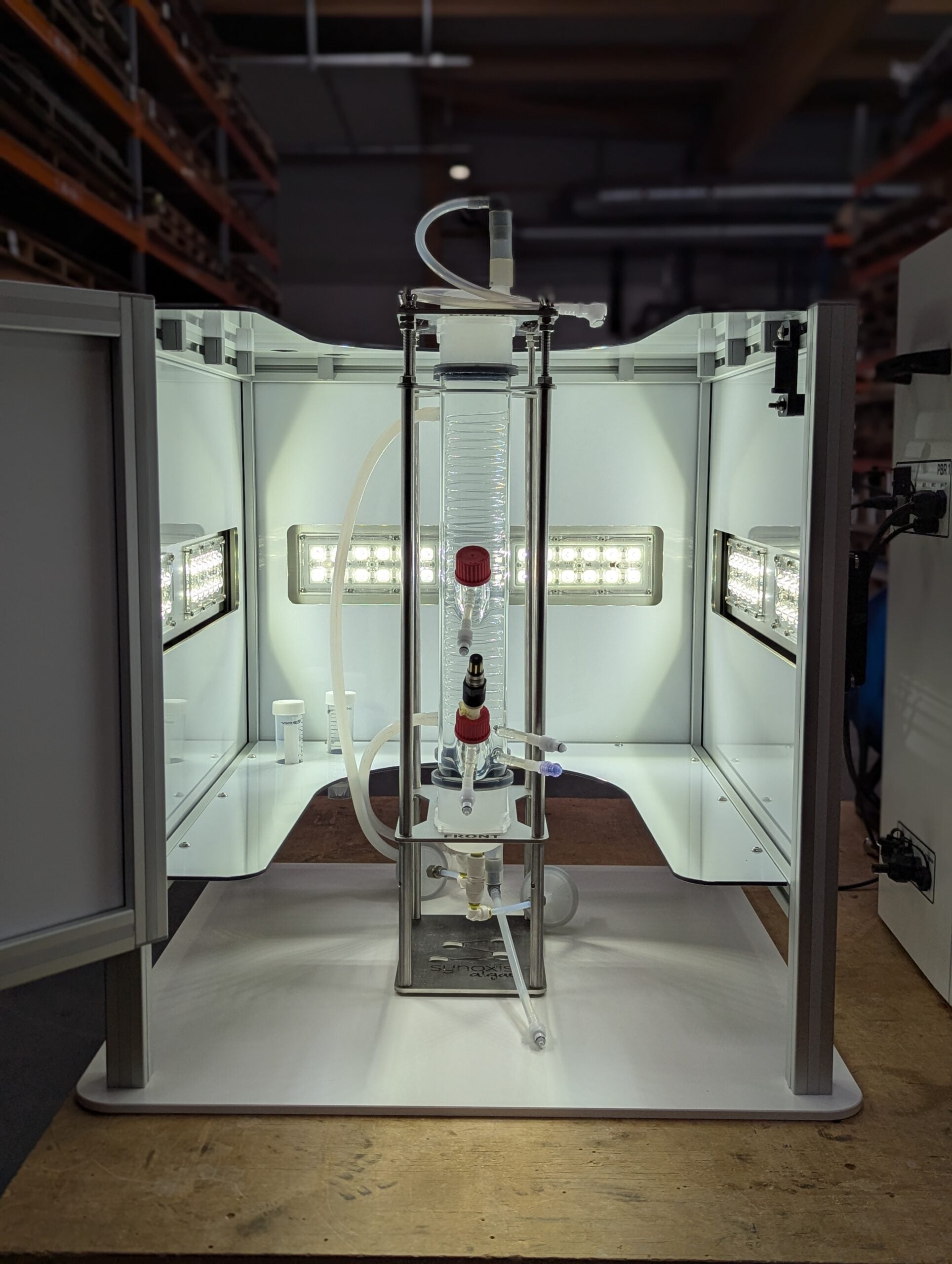

1 or 2 SALT chambers
LED WHITE
LED COLORS
Frequently asked questions
Can we cultivate fragile microalgae (which cannot withstand agitation)?
This technology has been developed specifically for the culture of fragile microalgae and, in particular, T-Iso, which is a shear-sensitive flagellated microalga. Thanks to gentle agitation, we can cultivate many different species of microalgae.
Can we cultivate in batch or continuous ?
The control system allows your to cultivate in batch, fed batch, semi-continuous or continuous.
What do I need to put a PBR into operation?
– Electricity for the light and the control system
– Air to agitate the culture
– Salt or fresh water depending on the strain
– CO2
– Nutrients
– A starting strain
– A suitable environment
Synoxis algae can help you to set up your lab.
Answers from Christel, biotechnology project manager at Synoxis algae
Technical details
Dimensions on the table (L x W x H)
2000 x 650 x 900 mm for NANO with 2 chambers
Total installed power
1300 W for NANO with 2 chambers
Useful volume of each growth chamber
1 x 3L or 2 x 3L with SALT technology
Regulation range
15 to 60 ºC (for a room at 20 º)
LED WHITE
S/V ratio: 68 m²/m3
0 to 400 μmol/m2/s
Compatible with sea water, fresh water, and brackish water

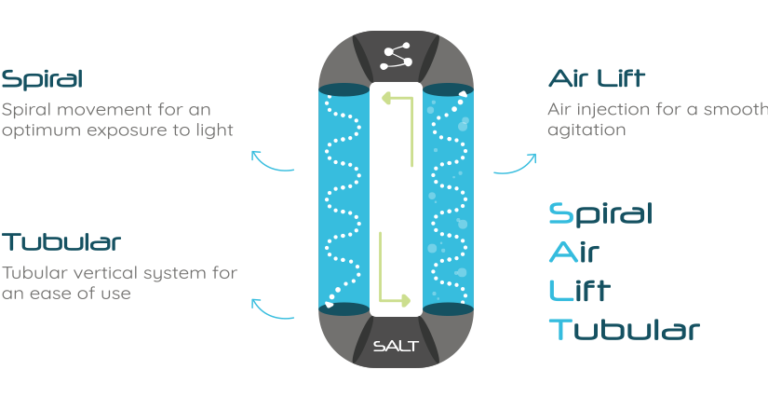

SALT is a patented technology developed by Synoxis algae to drastically improve productivity by optimising gas exchange and improving access to light.
